Bezier Construction
Weld
Join
Abstract Fill
Filet & Chamfer
to->Filled Shapes
Union, Intersection, Difference
Winding Rules
Punch
100% Vector

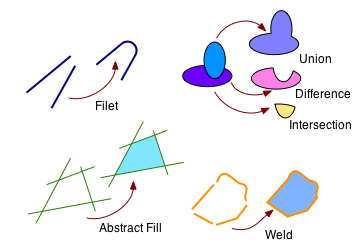

Example of converting a Claris Draw drawing to a native EazyDraw drawing.

Abstract Fill (Paint-Bucket tool):

Automatically assemble a filled shape from any abstract closed region on a drawing. This is a common (and easily implemented) tool found in pixel painting programs. But this capability is not commonly provided by vector drawing applications because precise vector algorithms are much more complex. EazyDraw provides a one click paint-bucket fill tool, with full vector accuracy.

Logical Combinations:

EazyDraw provides all the logic/geometric combination of shapes. This includes Union, Difference (A-B and B-A), and Intersection. All with full vector precision, naturally.

Weld:

Another simple concept "welding" is often missing in vector drawing applications, but not with EazyDraw. Assemble complex paths and curves from component paths and curves by placing them "end-to-end" then executing the Weld command.

Filet and Chamfer:

Create a perfect radius to join two intersecting paths (line, paths or curves) with a simple click of the Filet tool. Provide a defined radius and the math is automatic - computation of the intersection, derivation of the arc, matching extent of the arc. A "recents" submenu remembers radius settings for quick repeated use.

Winding Rules
You have full control over the color fill of complex shapes. Choice of two winding rules; Even-Odd and non-Zero. Winding rule fill control applies for all fills, patterns, textures, gradients, and solid colors. Winding rules apply to individual Bezier graphics and Joined Bezier groups.
Filled Shapes
If a line needs to become a rectangle - the Filled Shapes action is used. This capability is very valuable for Icon art, allowing a single icon to easily scale over wide ranges of size. This action handles complex shapes - not just lines, rectangles and circles.
Fully Vector
All of the techniques described here are implemented with full vector algorithms. EazyDraw does not create low quality bitmap images to facilitate simplistic implementation of these operations.
EazyDraw download is a 13 meg universal binary optimized for both the Intel and PowerPC Mac processors, run on Leopard or Tiger, Panther and Jaguar version available
The download is a disk image file (dmg), its size is 23 Meg.
